Esa Asset Malta provides complete system solutions for automatic parking barriers, taking care of the phases from installation to launch into operation, both for small and medium-sized facilities and for large, complex facilities.
Likewise Esa asset Malta is able to maintain the efficiency of the entire car park offering its customers customized maintenance contracts with different SLA (Service Level Agreement).
Esa Asset’s warehouse has original spare parts of the leading brands treated. If it is devoid of original spare parts needed, Esa Asset buys them from manufatures and is able to provide them on-site with timing related to the organization of the various houses.
There are several possible ways of providing the technological systems: refer specific page of the web site for more details.

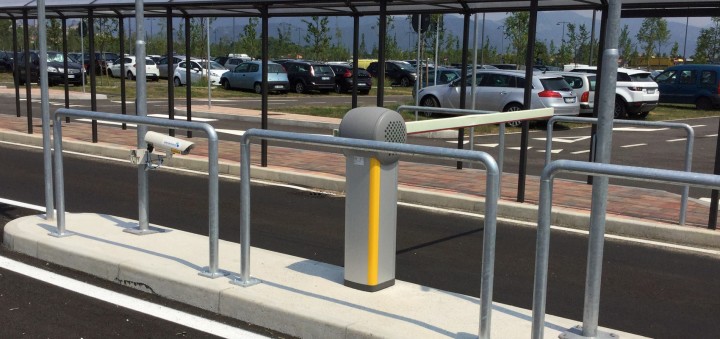

The result of years of research, the strong development of video management with TCP/IP technology and specific field test campaigns conducted on OCR technology, led Esa Service, Esa Asset Malta parent company, to the development of a particular ANPR system: Esa Gate.
Esa Gate superior quality and high reliability (with a guaranteed percentage of successful reading equal to 98%, even in the most difficult conditions) make Esa Asset Malta able to offer the Customer a powerful tool. It can be used in urban areas control, in restricted access areas control, in identifying cars, trucks, motorcycles, etc. with number plate reported to the Police and in parking lots management.
The benefits of the integration of Esa Gate in a parking system are:
• greater safety for the user thanks to the dual feedback between the number plate and the ticket received at the entrance;
• traceability of the actual parking time even when the Customer has lost his ticket (ticket loss) paying the right amount;
• control and eventual restriction of multiple transits in parking lots with a period of free access;
• possibility to check the car regularity (stolen number plate, number plate reported in “black list”.
The main system devices:
• the software “engine”, which is responsible for receiving, processing and logging data, but also interacting with opening barrier and informing the operator;
• the database, in which all transaction data are stored;
• the software, which allows the system configuration. In case of multiple operator workstations, it’s possible to decide which gates have to be shown on each workstation;
• the specific camera device with advanced intelligence system , connected with the central unit via LAN;
• the high-power infrared lighting system and particular integrated optical filters, which allow to obtain high quality images both with daylight and nightlight, avoiding the problems of glare caused by the headlights or from the license plate illumination lights, in order to obtain sharp images, even with moving vehicles.
Access Control is a system developed to enable people and vehicles entering or leaving certain areas or rooms/spaces. As part of urban mobility, the focus naturally shifts on vehicles.
With access control systems, it is possible to manage the entrances to an area based on credentials of the user requesting access, for example through recognition of the number plate.
The advantages and the potential compared to the classic use of keys or remote controls are manifold:
• recognizing people who have access to particular spaces or places and keep an archive of the transits and time in which they occurred;
• authorizing access by programming of time slots;
• allowing access to certain areas only to authorized persons;
• allow the counting of transited vehicles for Roads and Urban Planning purposes.
Esa Service offers a wide range of products for the control of commercial, industrial and high-risk sites, integrated with standard solutions or tailored for each type of application and need.
Vehicles traveling on public roads without insurance is a growing phenomenon and a very significant problem. In our home market, Italy, according to data provided by the ANIA (National Insurance Companies Association) and ACI (Italian Automobile Club), in Italy there are more then 3 milion cars registered in the Public Vehicles Registry but without a valid insurance.
This phenomenon, in addition to being an economic problem, it is a serious social problem that involves citizens, insurance companies, law enforcement agencies and not least compliance with state laws.
At the same time this issue includes being in order with other car documents and with periodical Ministry of Transport test.

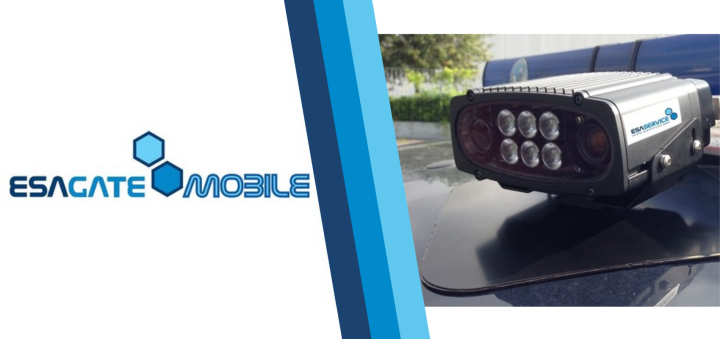

Esa Gate Mobile is a simple and effective system to counter these problems.
Esa Gate Mobile uses the latest automatic number plate recognition systems with Megapixel sensors able to recognize up to 100 plates per second, front and rear, in any light condition. Moreover, thanks to the magnetic support strong sealing Esa Gate Mobile can be installed on the vehicle roof, enabling real time analysis even during the patrol.
How the Esa Gate Mobile works:
• the camera detects the number plate in transit image decoding it immediately in an alphanumeric value directly on-board;
• using a Wi-Fi this value is instantaneously sent to ‘on-board unit;
• using a GPRS / UMTS connection the Esa Gate software, installed in the vehicle, it transmits the vehicle number plate values to the MOT database which returns specific information on the vehicle within a few seconds;
• depending on the outcome of the consultation (eg non-insured vehicle) Esa Gate Mobile Software activates an alarm signal on the on-board computer. An email notifications to external operators can be sent as well;
• once the message has been displayed, the operator can communicate to the control patrol downstream the vehicle data in infringement, to proceed to the latch and to the vehicle control.

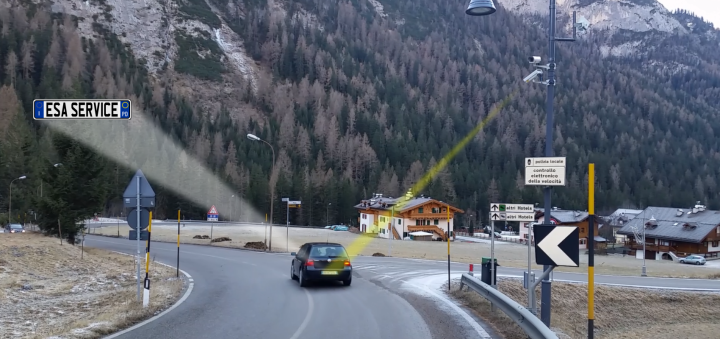

The result of years of research, the strong development of video management with TCP/IP technology and specific field test campaigns conducted on OCR technology, led Esa Service (Esa Asset Malta parent company) to the development of a particular ANPR system: Esa Gate.
Esa Gate superior quality and high reliability (with a guaranteed percentage of successful reading equal to 98%, even in the most difficult conditions) make Esa Service able to offer the Customer a powerful tool. It can be used in urban areas control, in restricted access areas control, in identifying cars, trucks, motorcycles, etc. with number plate reported to the Police and in parking lots management.
Esa Gate includes a Web-based software suite for managing and control of the Urban Mobility. In addition to the cameras for reading the plates, it is composed of numerous other sensors and devices for the management of mobility-related processes, city-logistics and territory security control
System Functionality:
• web based access control system related to number plate Recognition;
• georeferenced cartographic map (Google Maps, Open Street Map or image);
• real time transit dashboard page, personalized for each user;
• system protected by authentication through 5 permission levels;
• advanced search features within transit and export in different formats;
• software modularity makes new system features implementation and interfacing with new devices easier;
• system indipendency from Automatic Number Plate Recognition;
• possibility to execute different digital output in order to open barriers, gates, traffic lights;
• possibility to connect other access control system (RFID, etc.);
• possibility to connect other devices such as traffic coils, variable message traffic signs, weather station, etc.;
• management of reported cars and direct connection with “stolen vehicle list”.
The main system devices are::
• the software “engine”, which is responsible for receiving, processing and logging data, but also interacting with opening barrier and informing the operator;
• the database, in which all transaction data are stored;
• the software, which allows the system configuration. In case of multiple operator workstations, it’s possible to decide which transit monitoring stations have to be shown on each workstation;
• the specific camera device with advanced intelligence system, connected with the central unit via LAN;
• the high-power infrared lighting system and particular integrated optical filters, which allow to obtain high quality images both with daylight and nightlight, avoiding the problems of glare caused by the headlights or from the license plate illumination lights, in order to obtain sharp images, even with moving vehicles. Depending on the application (parking, roads, highways) are available cameras with different performance with reading skills to over 200 Km/h.
Shooting range variation through zoom lens, IR LEDs illumination modes, focus and others settings of the camera device can be controlled on site but also remotely through LAN network. This enables regular maintenance and devices fine settings, even after physical installation, during night-time, not demanding on-site interventions.

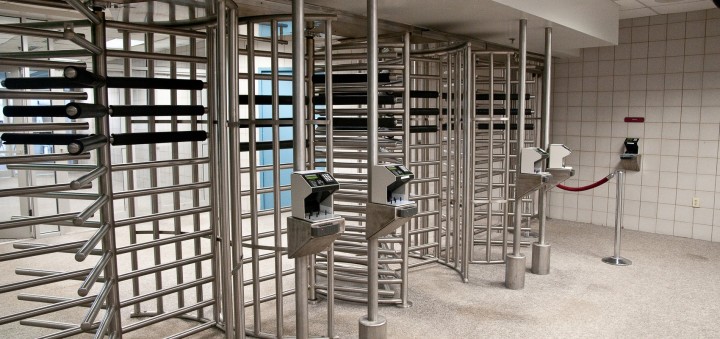

The Access Control is a system developed to enable people and vehicles entering or leaving certain areas or rooms/spaces.
With access control systems, it is possible to manage the entrances to an area based on credentials of the user requesting access, allowing authorized users to access locations or environments, with a simple insertion of a code or showing badge card to a badge reader or using parking ticket or through fingerprint recognition obtained by a biometric reader.
The advantages and the potential compared to the classic use of keys or remote controls are manifold:
• recognizing people who have access to particular spaces or places and keep an archive of the transits and time in which they occurred;
• authorizing access by programming of time slots;
• allowing access to certain areas only to authorized persons;
• allowing people or vehicle counting in order to to evaluate whether you have reached the upper limits of local capacity or to assess the number of people still inside.
Esa Asset offers a wide range of products for the control of commercial, industrial and high-risk sites, integrated with standard solutions or tailored for each type of application and need.
